即将举行的网络研讨会:实现无需离心的流式细胞术样品制备工作流程的标准化

登记

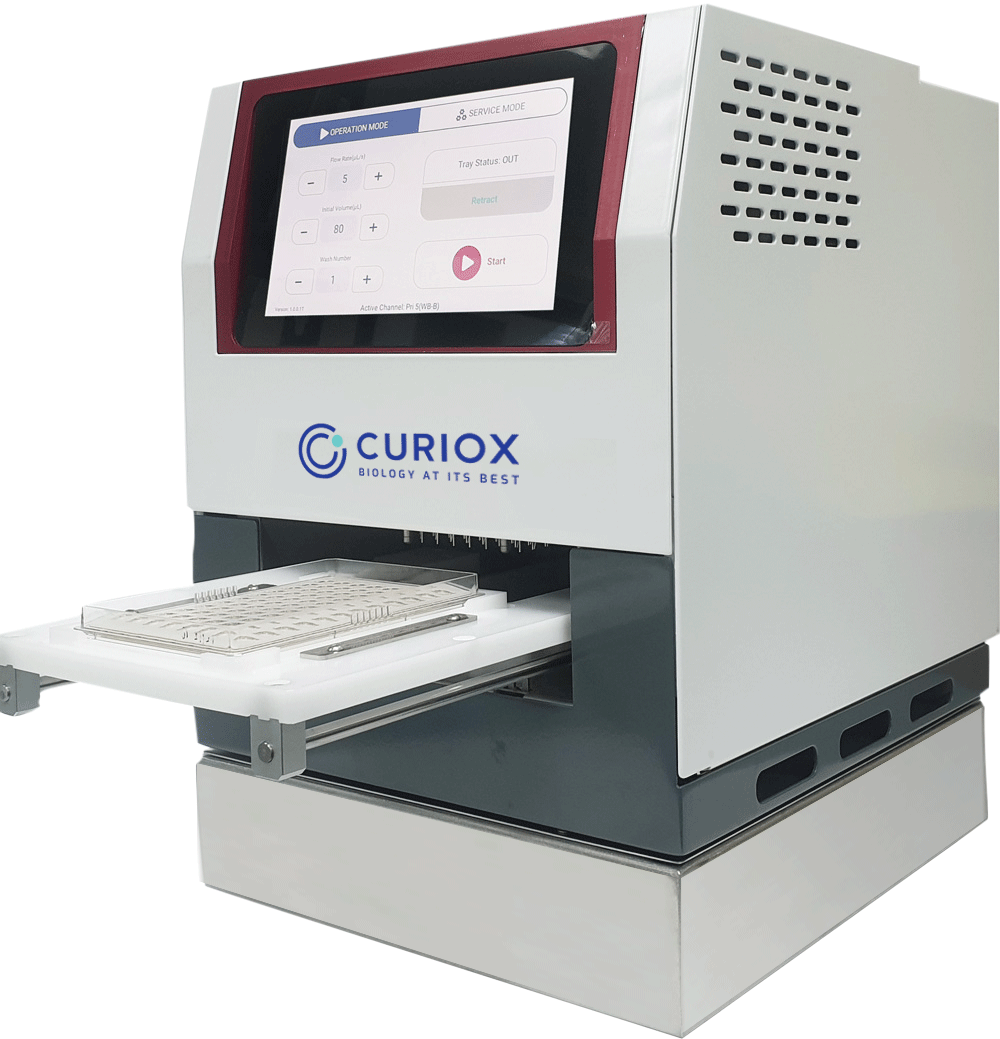

层流洗涤™ HT2000系统
层流洗涤™ HT2000系统
使用96 孔层流洗涤系统实现更高的通量,获得更清晰的数据
Curiox 层流洗涤 HT2000 系统,在利用层流技术温和清洗细胞的同时,通过高通量、自动化缩短您的工作流程
+

直观的触摸屏界面

快速设置起始体积、流速及洗涤次数等参数
+

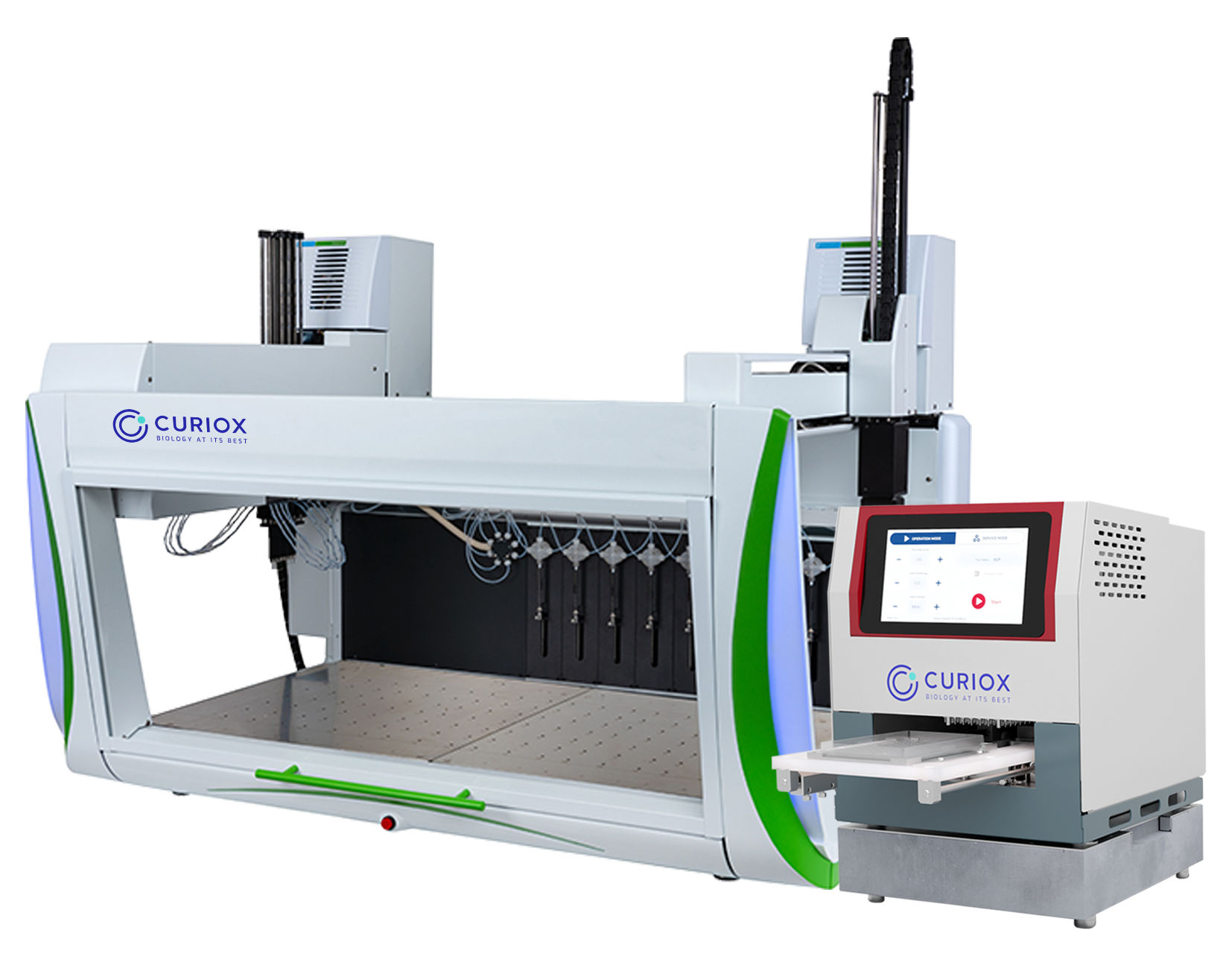

自动化高适配的固件及主板

便于轻松与其他自动化机器人平台整合
+

96孔高通量

使用温和的层流洗涤技术一次可同时处理大量样品
+

可选缓冲交换(BEX)

使用触摸屏界面可选择多达8种不同的解决方案。
HT2000系统的优势:

比离心更好的数据质量和更高的细胞回收率

减少细胞团聚和由此造成的仪器堵塞的风险

在不同操作者中具有更高的可重复性

缩短工作流程,3 分钟即可完全清洗 96 个样品

更高的染色指数,显著提高细胞亚群的分辨能力

减少样品雾化,可在大多数生物安全柜中使用,安全性更高

技术概览

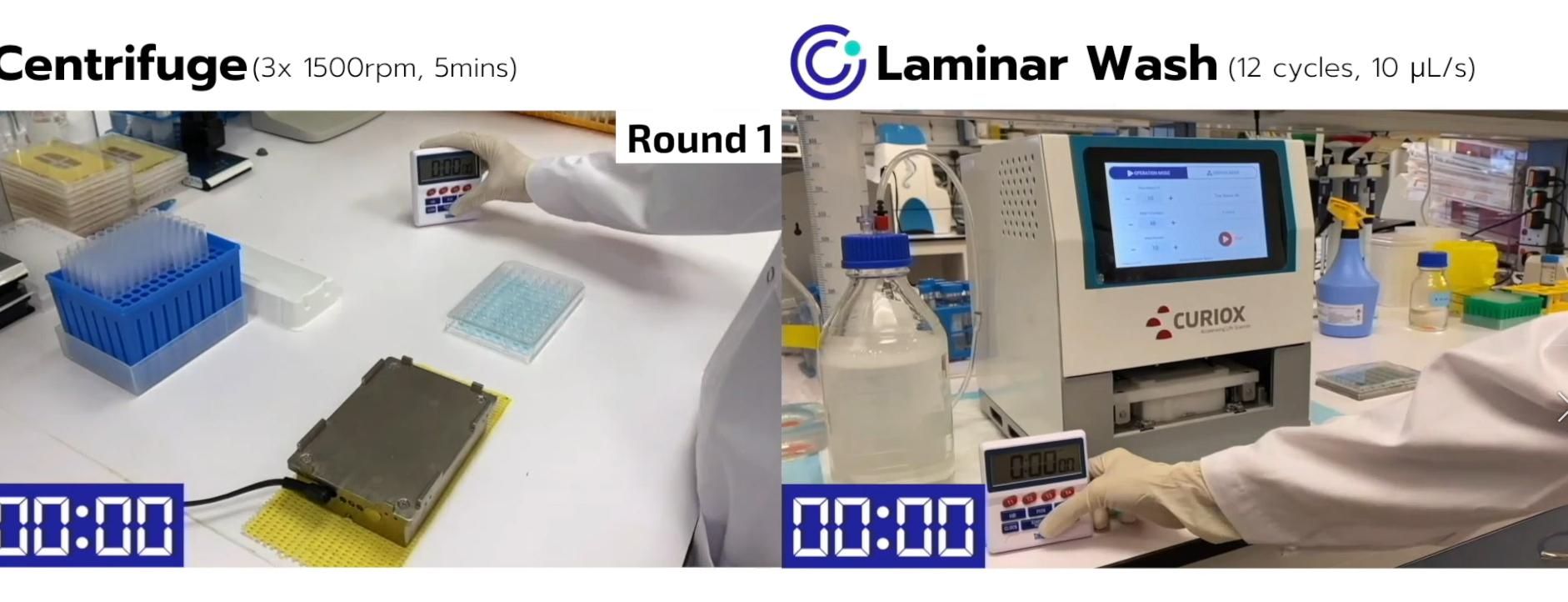

传统
工作流程
VS 层流
洗涤技术

与传统的、离心机驱动的细胞清洗工作流程相比,层流细胞清洗更简单、更快。使用HT2000,您可以在3分钟内完成96个样品的洗涤。

“With the Curiox Laminar Wash™ we retain more cells with much less data variation between samples than our centrifuge process.”

Jorgen Adolfsson 博士林雪平大学

点击查看视频

简单、高效地获取更好的数据
使用 HT2000 系统的层流洗涤技术,细胞会沉积在 96 孔层流洗涤板上,缓冲液温和流动,清洗掉杂质和碎片,如未结合的抗体或染料。 与离心不同,层流洗涤™对细胞施加的压力非常小,可以确保细胞表面标记物的完整性。 与基于离心的洗涤方法相比,层流洗涤将产生更清晰、更好的分离数据,并且该技术的温和性可实现更高细胞保留率和细胞活性。
我们的板和喷嘴设计如何清洗您的细胞

Curiox 层流细胞清洗技术的强大之处在于 96 样品板的独特设计。每个板包含一系列亲水点,悬浮细胞可以通过重力停留在这些点上。每个点周围的材料都是高度疏水的,就像一道无法穿透的墙,将您的样品隔开。


进入仪器后,两个喷嘴下降到每个点的每一侧,一个用于分配洗涤缓冲液,另一个用于吸出缓冲液和碎屑。


每个点可以将多达 1000 万个细胞清洗成单个细胞,而不会产生与离心相关的机械应力和细胞损失。

看看染料是如何在 7 次抽吸和分配洗涤循环的 2 分钟内从绿色荧光聚苯乙烯珠粒上洗掉的。在循环结束时,染料消失了,但聚苯乙烯珠粒留在原地。

使用层流洗涤系统获得的数据

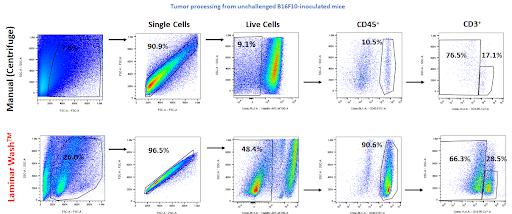

层流洗涤提供更好的细胞保留和更清洁、更清晰的数据
在荷瘤组织中进行细胞解离时,组织碎片和酶促碎片是影响肿瘤浸润淋巴细胞细胞恢复的主要因素。 对于更具侵入性和免疫学挑战性的模型,如 B16F10 接种的小鼠,有限数量的 TIL 的恢复减少了准确表征的机会。 此处显示的结果是用未受攻击的小鼠样本和层流清洗技术证明的。层流洗涤(使用 1,000,000 个肿瘤浸润细胞)显示通过层流洗涤增加了活细胞计数并减少了碎片效应。 与 10.5% 的离心-苛刻洗涤相比,更清洁的样品制备可将淋巴细胞回收率提高至 90.6%。

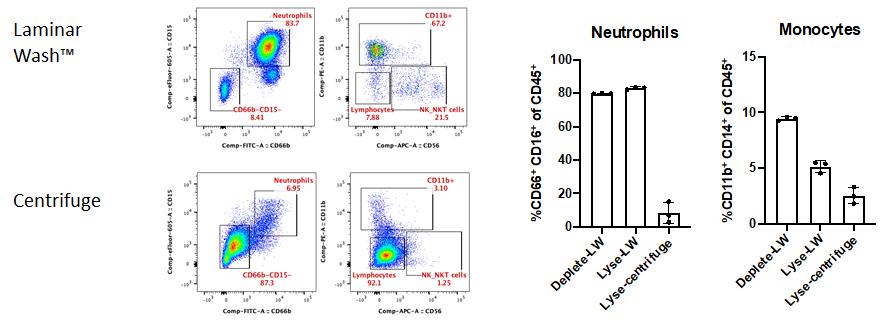

层流洗涤促进中性粒细胞和单核细胞保留,以改善分类血细胞计数
使用 100ul 人全血,通过层流洗涤使用 16 色流式细胞术面板进行比较研究,重点关注 T 细胞。用氯化铵缓冲液裂解的全血首先离心一次以减少体积,然后等分以与抗体一起孵育并在层流洗涤或聚苯乙烯管中的离心机上洗涤。通过在一个洗涤步骤中用层流洗涤代替离心机,可以清楚地分离稀有 T 细胞群,例如 MAIT、γ-δ T 细胞和调节性 T 细胞。中性粒细胞和单核细胞的保留率升高,通过直接采集到 BD Fortessa 进行观察和量化,允许最小的细胞扰动。

图 2. 用 (NH4Cl) 裂解并使用 HT2000 层流技术洗涤的人红细胞 (RBC)(顶部)显示出比使用离心对管中的样品(底部)裂解和洗涤的红细胞更好的细胞保留和更紧密的细胞群,无论是否计数通过 CD45 染色或 FSC-SSC 散射。
技术规格
  • 电压 100-240V
  • 功率 24V/3.0A
  • 尺寸 51.3cm 高 x 26.2cm 宽 x 30.2cm 长

  • 重量 14kg (31磅)
配件与组件
  • 层流洗涤96孔板  96-DC-CL-05
  • 定制版层流洗涤96孔板  96-DC-CL-05-CP

  • HT缓冲液切换器5  DC-BX-01-05

  • HT缓冲液切换器10  DC-BX-01-10

对我们的产品感兴趣?
联系我们,了解层流洗涤系统如何改善您的工作流程
